ムジカ公式ブログ MUSICA Official weblog

オーディオと音楽とすこしマニアック。 MUSICA are a new Hi-Fi brand from Japan.

新製品! フォノアンプ iris-phono vol.5

2013-09-30 | アイリス iris

新製品! フォノアンプ iris-phono vol.4」の続きです。

ムジカでは現在4種のフォノアンプを発売しています。

pho30,pho30gd,pho60,iris-phonoです。

これらの音色の違いをお話ししたいとおもいます。

pho30はとてもベーシックな音ですので

これを基準にします。

いずれもMC入力についてです。

pho30gd

現代的なハイスピードな音。

レンジは広く、細かな音もよく再現します。

ロックやポップス、近現代のクラシックも良いと思います。

pho60

暖かみがあり、低域にガッツのある音。

アナログディスクはこうあるべきだという音です。

ジャズにはピッタリ。とくにビックバンドはお勧めです。

iris-phono

透明感があり、とても自然な音。

いわゆる「綺麗な音」「品位を感じさせる音」

特にストリングスとヴォーカルの美しさは絶品です。

開発時にはベートーヴェンの春をよく聴いていました。

クラシックはもちろん、

ジャズでは女性ヴォーカルやピアノトリオを

よく聴かれる方にお勧めです。

仕様

形式:CR型フォノイコライザーアンプ

入力:MM 37dB MC57dB

真空管:12AT7 2本

寸法:W300mm × H70mm × D230mm(突起部含まず)

付属品 電源ケーブル

標準小売価格 ¥160,000(税別)

次回に続きます。

*9月は当社の決算のためアウトレット品をお値打ちに販売しています。



New product! Phono amplifier iris-phono vol.5

It is a continuation of "New product! Phono amplifier iris-phono vol.4"

There are four sorts of phono amplifier in MUSICA.

It is pho30, pho30gd, pho60, and iris-phono.

I would like to speak about the difference among these tones.

Since pho30 is a very basic sound

It is based on this.

All are based on MC input.

pho30gd

Modern high speed sound.

A range is large and also often reproduces a fine sound.

Locke, pop, and modern classical are suited.

pho60

A warm tone. Dynamic bass.

An analog disk can greatly be enjoyed.

Jazz is suited. Especially a big band is recommended.

iris-phono

Clear sound. Natural sound.

Beautiful and dignified sound.

Especially the string and vocal are good.

I was often hearing Beethoven's spring at the time of development.

Classical music is suited.

Female jazz vocal and a jazz piano trio are suited.


specification:CR type phono equalizer amplifier

input:MM 37dB MC57dB

tube:12AT7

size:W300mm x H70mm x D230mm (height is not included)

accessories:power cable

To be continued.

コメント
  • X
  • Facebookでシェアする
  • はてなブックマークに追加する
  • LINEでシェアする

新製品! フォノアンプ iris-phono vol.4

2013-09-29 | アイリス iris

新製品! フォノアンプ iris-phono vol.3」の続きです。

iris-phonoの3つの特徴をお話しましたが、

設計者として、もうひとつお話しておきたいのは

デザインについてです。

自動車は実に多彩です。

自動車は何色あるのでしょう?

街にはたくさんの色の車が走っています。

また、多くのユーザーがデザインにも大きな関心をもって選択しています。

同じことは洋服やバック、腕時計にもあてはまります。

オーディオアンプは?

そのほとんどは、シルバーとゴールド。

デザインでブランドを言い当てることができるものはごくわずかです。

デザインの好き嫌いはありますが『マッキントッシュ』。

青いメーターやガラスのパネル。

個性的ではありますが、今なお多くの方に愛され続けています。

アイリスシリーズは地元大垣の武将 稲葉一鉄(頑固一鉄で有名な)の

曽根城跡に咲く花菖蒲(ハナショウブ)をイメージしてデザインしました。





曽根城跡には3,800平方メートルに、約170品種 25000株の花菖蒲が咲き誇ります。

こんなオーディオ機器があっても良いのでは?

リビングの一番良い席を陣取っているアンプを見ると

そう思うのです。


仕様

形式:CR型フォノイコライザーアンプ

入力:MM 37dB MC57dB

真空管:12AT7 2本

寸法:W300mm × H70mm × D230mm(突起部含まず)

付属品 電源ケーブル

標準小売価格 ¥160,000(税別)

次回に続きます。

*9月は当社の決算のためアウトレット品をお値打ちに販売しています。



New product! Phono amplifier iris-phono vol.4

It is a continuation of "New product! Phono amplifier iris-phono vol.3"

Three features of iris-phono were explained.

It explains as a designer.

It is about an appearance design.

A car has very many colors.

Moreover, many users are interested in the appearance design.

The same thing is applied also to clothes, a bag, and a wrist watch.

Audio amplifier?

Most are silver and gold.

What can guess a brand right by a design is very slight.

It is "Macintosh" although there are tastes of a design.

The panel of blue meter or glass.

It is individual.

It is still continuing being loved at many people.

Iris series imagined and designed the iris which blooms

to the Sone castle of samurai Ittetsu Inaba.





In the Sone castle, they are about 170 kinds to 3800 square meters,

25000 shares of irises bloom.

Audio amplifier is in the best seat of a living room.

I think that such audio instruments are good.

An original tone is renewable.

specification:CR type phono equalizer amplifier

input:MM 37dB MC57dB

tube:12AT7

size:W300mm x H70mm x D230mm (height is not included)

accessories:power cable

To be continued.
コメント
  • X
  • Facebookでシェアする
  • はてなブックマークに追加する
  • LINEでシェアする

新製品! フォノアンプ iris-phono vol.3

2013-09-28 | 20シリーズ

新製品! フォノアンプ iris-phono vol.2」の続きです。

3つ目の特徴である「(3) CR型イコライザー回路」についてです。

現在市販されているフォノアンプの大半はNF型です。

CR型はノイズ弱いというのがおおきな理由です。

ところがNF型には1つ問題があります。

NF型は帰還量をコントロールすることによってRIAAカーブを作り出しています。

高域の帰還量は多く、低域の帰還量は少なくなります。

この帰還量の差は100倍にもなります。

つまり、低域はほぼ無帰還(NON-NFB)

高域は40dB以上の帰還量になるのです。

高域と低域とで音色が異なると考えられます。

CR型にこのようなことはなく本来の音色を再生することができます。


仕様

形式:CR型フォノイコライザーアンプ

入力:MM 37dB MC57dB

真空管:12AT7 2本

寸法:W300mm × H70mm × D230mm(突起部含まず)

付属品 電源ケーブル

標準小売価格 ¥160,000(税別)

次回に続きます。

*9月は当社の決算のためアウトレット品をお値打ちに販売しています。



New product! Phono amplifier iris-phono vol.3

It is a continuation of "New product! Phono amplifier iris-phono vol.2"

About the 3nd feature "CR type equalizer circuit"

Most phono amplifier marketed now is NF types.

Because, CR type is vulnerable in a noise.

However, there is a problem in NF type.

NF type has made the RIAA curve by controlling the amount of returns.

There are many amounts of returns of treble

and there are few amounts of returns of bass.

The difference of the amount of returns increases 100 times.

That is, bass is NON-NFB.

treble is 40 dB or more in the amount of returns.

It is thought that the tones of treble and bass differ.

There is no such thing in CR type.

An original tone is renewable.

specification:CR type phono equalizer amplifier

input:MM 37dB MC57dB

tube:12AT7

size:W300mm x H70mm x D230mm (height is not included)

accessories:power cable

To be continued.
コメント
  • X
  • Facebookでシェアする
  • はてなブックマークに追加する
  • LINEでシェアする

新製品! フォノアンプ iris-phono vol.2

2013-09-27 | アイリス iris

新製品! フォノアンプ iris-phono vol.1」の続きです。

2つ目の特徴である「(2) 無帰還(NON-NFB)」についてです。

NFBは便利な回路です。

多少特性の悪いアンプでもNFBをかけることで素晴らしい特性に変装します。

しかし、残念ながらNFBでも音質は変化しないのです。

私は「NFBはメッキのようなものだと」思うことがあります。

表面的にはきれいですが、何か質感が違う・・・

最低品質のアンプにNFBをたっぷりかけた場合と、

高度な技術で設計されたアンプを高品位なパーツを使い無帰還とした場合とでは

特性上は同じであっても音質は全くことなるのです。

iris-phonoは全ての回路においてNFBを全く使用していません。

これはとても珍しい事です。

音質はとても開放的で素直。

真空管アンプ本来の良さをお聴き頂けます。

仕様

形式:CR型フォノイコライザーアンプ

入力:MM 37dB MC57dB

真空管:12AT7 2本

寸法:W300mm × H70mm × D230mm(突起部含まず)

付属品 電源ケーブル

標準小売価格 ¥160,000(税別)

次回に続きます。

*9月は当社の決算のためアウトレット品をお値打ちに販売しています。



New product! Phono amplifier iris-phono vol.2

It is a continuation of "New product! Phono amplifier iris-phono vol.1"

About the 2nd feature "NON-NFB"

NFB is a convenient circuit.

Amplifier with the bad characteristic disguises itself

as the wonderful characteristic by NFB.

However, though regrettable, NFB does not change sound quality.

I consider NFB is like plating.

A feel is different although the surface is beautiful....

NFB to the amplifier of the minimum quality.

It is a high-definition part about the amplifier designed

with advanced technology, and is NON-NFB.

Even if the characteristic is the same, sound qualities completely differ.

iris-phono is using NFB at all in no circuits.

This is very rare.

Sound quality is very open and gentle.

The original merit of a tube amp is felt.

specification:CR type phono equalizer amplifier

input:MM 37dB MC57dB

tube:12AT7

size:W300mm x H70mm x D230mm (height is not included)

accessories:power cable

To be continued.
コメント
  • X
  • Facebookでシェアする
  • はてなブックマークに追加する
  • LINEでシェアする

新製品! フォノアンプ iris-phono vol.1

2013-09-26 | アイリス iris

先日の『山寺でレコードコンサート』で公開した新製品iris-phonoの詳細です。



このフォノアンプの特徴は次の3点です。

(1) 全段真空管によるフォノイコライザーアンプです。

(2) 無帰還(NON-NFB)です。

(3) CR型イコライザー回路です。

これらを順番に解説していきます。

(1) についてですが、

真空管はオーディオデバイスとしての性能は十分なのです。

しかし、その発熱や、小型化できないことで一般家電製品からは敬遠され

現在ではオーディオアンプやギターアンプ用に細々と製造されているのが現状です。

ところが、オーディオの世界では真空管アンプの人気が高く、

当社でも多くの製品に真空管が使用されています。

真空管式のパワーアンプやプリメインアンプは多くのメーカーから発売されていますが

全段真空管によるフォノアンプはたいへん珍しい存在です。

これは真空管はトランジスターやFETよりもノイズに弱いためなのですが、

musicaでは超ローノイズ電源とプリント基板を使用しない配線方法によって

この問題を解決しました。

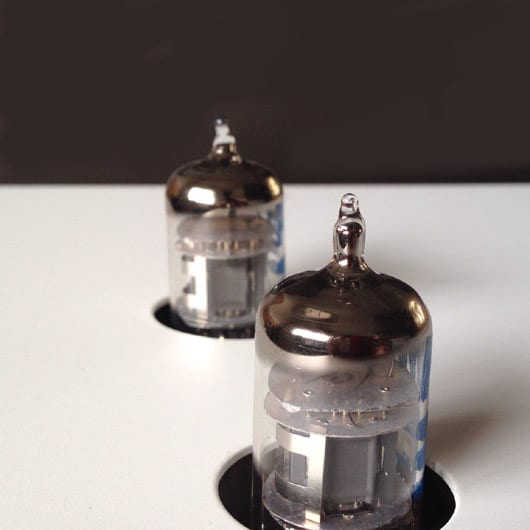

真空管は12AT7を使用。

この真空管は高周波用に開発された球で、

比較的ノイズに強い真空管です。



10月1日予約開始で10月20日頃から出荷となります。

次回に続きます。

*9月は当社の決算のためアウトレット品をお値打ちに販売しています。



New product! Phono amplifier iris-phono vol.1

They are details of new product "iris-phono" used by the record concert.



The feature of this phono amplifier is the following three points.

(1) Phono equalizer amplifier by a whole page vacuum tube

(2) NON-NFB

(3) CR type equalizer circuit

These are explained in order.

(1) be alike and attach

The performance of a vacuum tube as an audio device is enough.

However, it is not used for home electronics for generation of heat or a size.

Now, it is minutely manufactured audio amplifier and for guitar amplifier.

However, in an audio, a tube amp is popular.

The vacuum tube is used for many products also in our company.

Although vacuum tube-type power amplifier and integrated amplifier are

put on the market by many makers,

All tube phono amplifier is very new.

A vacuum tube is more nearly vulnerable in a noise than in a transistor or FET.

At musica, it solved by a "super-low noise power supply" and

"wiring which does not use a PC- board."

A vacuum tube is 12AT7.

This vacuum tube was developed for high frequency.

It is comparatively tough in a noise.



It is October 20 sale.

To be continued.
