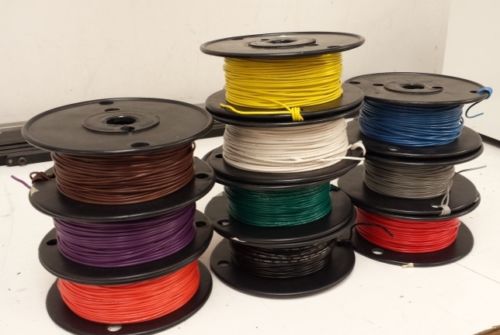

PTFE High Temperature Stranded Wire

PTFE Wire is used in high temperature electronic applications or where abrasion resistance is required. It has excellent thermal aging, solder damage, flame, and moisture resistance. PTFE resists solvents, grease, ozone and other chemicals. Low power loss, ideal for high frequency applications. Recommended for critical applications.

Conductor: Silver-plated stranded copper wire

Insulation: Extruded PTFE Insulation, wall thickness .010 in (.25 mm)

Temperature Range: -65°C to +200°C (-85°F to +392°F)

Compliances: Passes UL VW-Flame Test and Birdcage Test, RoHS Compliant

Features: Excellent thermal aging, solder damage, flame, and moisture resistance. Resists solvents, grease, ozone and other chemicals. Low power loss, ideal for high frequency applications.

Voltage Rating: 600 VAC

Gauge (AWG)	Number of Strands	Gauge of Strands (AWG)	Conductor Diameter		Finished Wire Diameter				Max. Resistance (DC at 20°C) Ohm/per		Nom. Weight
					Min		Max
			Inch	mm	Inch	mm	Inch	mm	1000-ft	Km	LBS./1000 ft.	KG/Km
10	37	26	.108	2.74	.127	3.23	.141	3.58	1.19	3.90	34.9	51.9
12	19	25	.084	2.13	.107	2.72	.121	3.07	1.81	5.94	22.6	33.6
14	19	27	.067	1.70	.088	2.24	.102	2.59	2.88	9.45	14.7	21.9
16	19	29	.053	1.35	.073	1.85	.087	2.21	4.53	14.8	9.77	14.5
18	19	30	.047	1.19	.064	1.63	.074	1.88	5.79	19.0	7.60	11.3
20	19	32	.038	.97	.054	1.37	.062	1.57	9.19	30.1	5.12	7.62
22	19	34	.030	.76	.046	1.17	.054	1.37	15.1	49.5	3.47	5.16
24	19	36	.024	.61	.040	1.02	.048	1.22	24.3	79.7	2.44	3.63
26	7	34	.019	.48	.035	.89	.043	1.09	40.5	133	1.74	2.59
28	7	36	.015	.38	.031	.79	.039	.99	63.8	209	1.28	1.90
30	7	38	.012	.31	.028	.71	.036	.91	101	330	.990	1.47

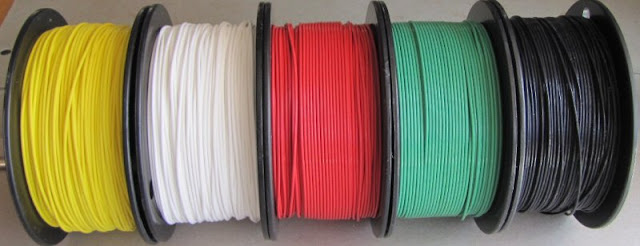

22 AWG PTFE wire - High Temperature wire

PTFE Wire for high temperature use having good flexibility. For use where abrasion resistance is required.

Application: PTFE non-stick coated wires are intended for electrical or electronic use in protected applications where high temperature will be encountered. The wires have excellent resistance to thermal aging, solder iron damage, flame, and moisture. PTFE coating also resists solvents, greases, ozone and most other chemicals. These wires are easy to install due to their small size and slippery surface. PTFE has excellent, stable electrical characteristics with low power loss, making it ideal for high frequency applications.

Description:

• Stranded Silver Plated Copper, Extruded PTFE Insulation

Characteristics:

• Temperature Rating: MIL-W-16878: -60°C to +200°C UL 1213: + 105°C
• Voltage Rating: MIL-W-16878: 600 Volts

PTFE Sheet Plastic Panel, White, 1.25" X 3.5" X 5.5"

1.25" X 3.5" X 5.5" White Color PTFE Sheet TFE Plastic Panel

Key Characteristics:

• High temperature
• High strength
• Good chemical resistance
• Good electrical properties
• Low COF (Coefficient of Friction)
• Good toughness

PTFE is a thermoplastic polymer, which is a white solid at room temperature, with a density of about 2200 kg/m3. According to DuPont, its melting point is 600 K (327 °C; 620 °F). It maintains high strength, toughness and self-lubrication at low temperatures down to 5 K (−268.15 °C; −450.67 °F), and good flexibility at temperatures above 194 K (−79 °C; −110 °F). PTFE gains its properties from the aggregate effect of carbon-fluorine bonds, as do all fluorocarbons. The only chemicals known to affect these carbon-fluorine bonds are highly reactive metals like the alkali metals, and at higher temperatures also such metals as aluminium and magnesium, and fluorinating agents such as xenon difluoride and cobalt(III) fluoride.

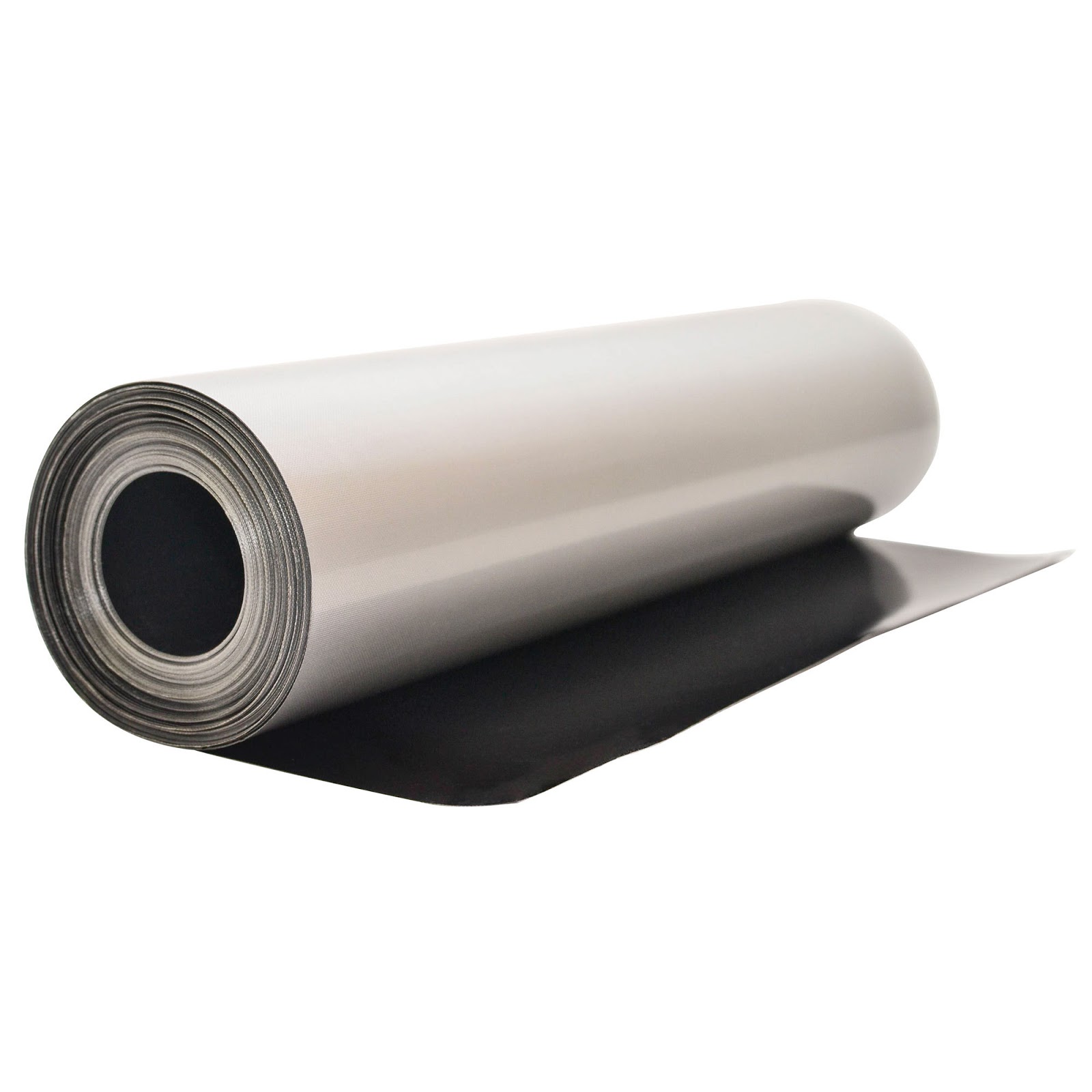

1/4" PTFE Release Sheets

Overall Dimensions:
Length: 36 yd.
Width: 12 1/4"

With these 12 1/4" x 36 yd. high speed toaster PTFE sheets you can offer your customers a faster, more reliable, streamlined service every time! The durable PTFE material prevents food from getting stuck and causing messes - never again will you have to worry about your toaster line running slow due to the clean up of stuck bread.

The triple-coated flouropolymer material ensures a long life of non-stick performance, up to 30% longer than many comparable release sheets. After use, simply wipe these sheets with a damp cloth for a quick and convenient clean up. With 36 yds. in every roll, your business will be in good supply and best of all, you can easily cut this sheet to size. Exceptionally heat-resistant, up to 500 degrees Fahrenheit, and easy to use, these non-stick toaster release sheets will help to significantly reduce a common kitchen frustration. These 12 1/4" x 36 yd. PTFE release sheets are sure to keep your operation running smoothly for a long time to come.

Hollow bar PTFE white Ø 40*30 mm rod

One key importantadvantage of PTFE Rod is its operating temperature range,it can easily outperform other engineering plastics by being able to perform continuously at-250°C, right up to an amazing 250°C. Another important advantage of PTFE Rod is its outstanding co-efficient of friction, PTFE is in the record books ashaving one of the lowest friction values known to man. PTFE also has excellentacid and chemical resistance. Another feature of PTFE is its ability to set byor due to compression.

PTFE Rod Features:Usage temperature range is very broad (Celsius from - 200 degrees to +260 degrees); Anti-majority chemical substance's corrosiveness, except some fluorides and alkalinity moltenmetal;Excellent mechanical properties, aging resistance;Excellent flame resistance(Conforms to ASTM-D635 and D470 test step),in the air to be regulated as a flame retardant material;Very low water absorption......
