PTFE Lined Pipe and Fittings

Use PTFE lined piping in any application where superior chemical resistance is required. Compared to other plastic pipe lining, PTFE has been proven to reduce permeation rates by up to 60%. It is also far more resistant to corrosion and high temperatures, and it features a full vacuum rating up to 450°F.

As a result, PTFE lined pipe and fittings are ideal for severe service applications, including pulp and paper processing, and power generation. Compared to exotic alloy materials or glass lining, PTFE is an economical choice that gets the job done right.

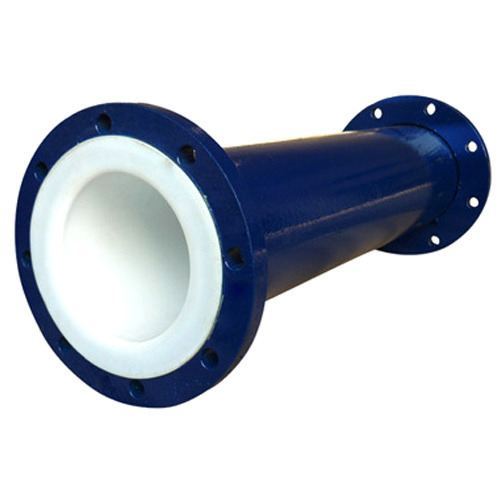

PTFE Lined Pipe

PTFE lined pipe provides unmatched chemical resistance at temperatures to 260ºC. Because its carbon chains are completely fluoronated, PTFE is chemically inert to the following broad range of commercial chemicals:

• All acids including hydrofluoric, hydrochloric, sulphuric and aqua regia
• Chlorides - organic and inorganic
• Sulphates - organic and inorganic
• Bleach solutions
• Solvents
• Phenols
• Caustics
• Peroxides

Combined with the chemical inertness of PTFE are its usual non stick properties. Thus a PTFE lined pipe system eliminates and/or minimises build up of deposits on the pipe walls, which otherwise would reduce flow and possibly affect processing operations.

PTFE Lined Pipe for chemical resistance at extreme temperatures

• Size range - 25 - 300 NB
• Steel Pipe - Welded or seamless, schedule 40
• Flanges - Any speciation (ASA 150lb STD)
• Pressure - As per steel pipe recommendation
• Max Temp - 230ºC
• Exterior Finish - Primer (ROZC) or as specified
• QA to ASTM requirement
• Dye Penetrate Test
• Welding Certificates (WPS / PQR)
• Spark Test / Electrostatically
• NDT Test
• Hydrostatic Test
• Material Certification

PTFE lined pipe is suitable for water, acid, chemical, food, mining, petroleum, gas, medical and energy applications.

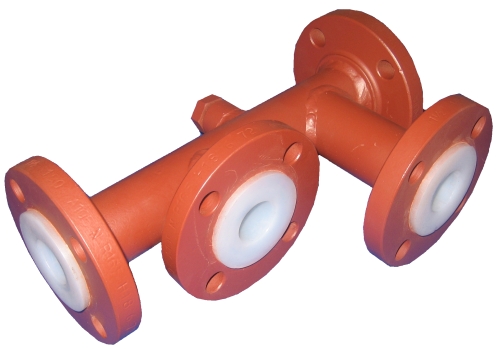

ptfe lined pipe, teflon lined fittings

Our PTFE lined & jacketed steel dip pipes and spargers are manufactured to the highest standards in the industry. All units are given extreme stress tests to validate their integrity and ensure long life.

PTFE is one of the most versatile materials used for lined pipe and fittings. It is near-universally chemically resistant and capable of withstanding temperatures as high as 450°F (230°C), making it ideal for handling nitric acid, oleum, nitrobenzene and other fluids used in industrial and manufacturing processes.

Choose a PTFE pipe fitting for pharmaceutical, food and beverage, and other applications where performance can’t be sacrificed in the name of cost savings.

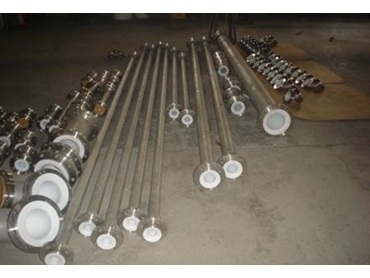

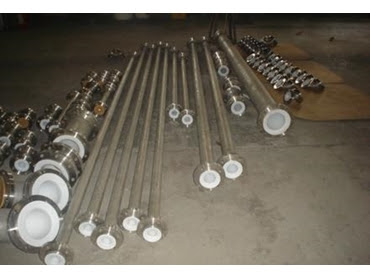

PTFE Lined Pipes 25 NB to 450 NB



Our PTFE lined pipe series starts from 25mm to 300mm Diameter and up to 3000mm in lengths. Our standard pipes are with one end fix flange and one end loose flange.

• Size: 25 NB to 450 NB
• Pipe material: 106 grade B Sch 40 from 25 NB to 150 NB
• Flanges used: ASTM A 105/IS 2062
• Hydro test: at 29.8 Kg/cm2
• Spark test: 15 KVA





The manufactured using high-grade raw material, advent tools and sophisticated technologies, our range is widely used in diverse industrial applications. The raw material used during the fabrication process is sourced from reputed vendors such as DuPont. Offered in varied sizes & specifications, the range can also be customized as per the clients' requirements.



Features:High performance;Rugged;Low maintenance;Technical.

Extrusion PTFE Rod,Dia - 4mm to 200mm

Extrusion PTFE Rod has a wide range of practicable temperature from -180C~+260C and a wax-like surface to which anything hardly sticks. Extrusion Teflon rod has the lowest coefficient of friction of all known solid materials. Extrusion Teflon bar has the best electrical properties of all plastic.

Use of the Extrusion PTFE bar The electrical insulation used under various kinds of frequency, the seal liner of various kinds of corrosivity medium, Antisticking materials, lubrication material.

Project Name	Unit	Result
Apparent Density	g/cm3	2.1 ~ 2.3
Tensile Strength	Mpa	≥ 14.0
Ultimate Elongation	%	≥ 150
Dia. ( mm )	4, 5, 6, 7, 8, 9, 10, 12, 15, 18, 20, 25, 30, 35,
40, 45, 50, 55, 60, 65, 70, 75, 80 ...150.. .200
Length ( mm )	1000mm ; 2000mm
